Machining Center

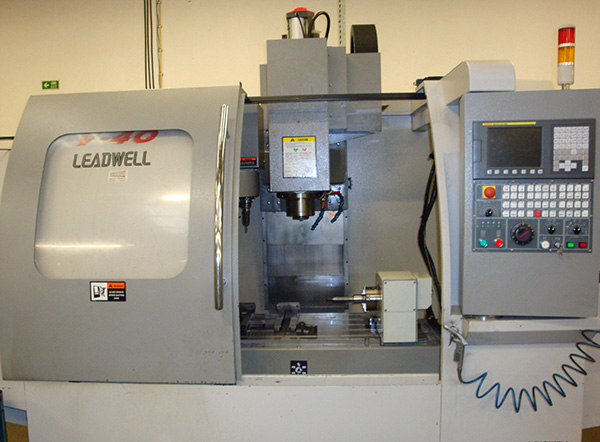

LEADWELL V40 C/4º EIXO

X travel: 1020 mm
Y travel: 510 mm
Z travel: 610 mm
RPM: 10000
Spindle motor: 12 hp

LEADWELL V60

X travel: 1520 mm
Y travel: 760 mm
Z travel: 720 mm
RPM: 8000
Spindle motor: 20 hp

LEADWELL V60i

X travel: 1520 mm
Y travel: 760 mm
Z travel: 720 mm
RPM: 8000
Spindle motor: 20 hp

Lathe

LEADWELL T6

X travel: 250 mm
Z travel: 350 mm
RPM: 450

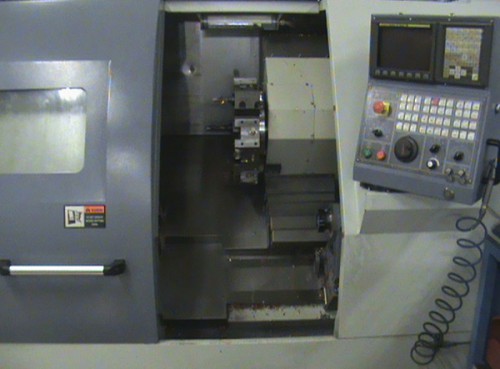

LEADWELL T7

Max. diam. of tilting: 330 mm
Max. length of tilting: 500 mm
Max. rot. bush.: 3500 rpm
Amount of tools: 12

TRENS SN 32

X travel: 400 mm
Z travel: 1000 mm
RPM: 2500

LEADWELL T8 SM

Max. diam. of tilting: 330 mm
Max. length of tilting: 500 mm
Max. rot. main bush: 3500 rpm
Max. rot. sec. bush: 4500 rpm
Amount of tools: 12
Rot. rotating tools: 3000 rpm

Milling Machines

COMET

X travel: 800 mm
Y travel: 380 mm
Z travel: 350 mm
RPM: 4500

BRIDGEPORT

X travel: 750 mm
Y travel: 295 mm
Z travel: 350 mm
RPM: 3000

Pressbreak and Guillotine

Pressbreak

Max. Pressbreak long: 1000 mm
Power: 30 ton.

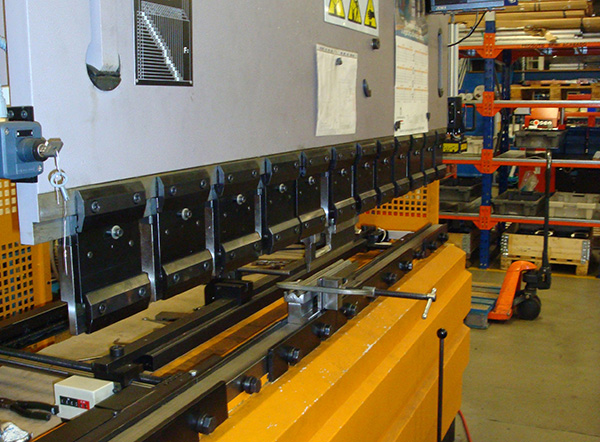

Pressbreak

Max. Pressbreak long: 2000 mm
Power: 50 ton.

Guillotine

Max. length cutting: 3000 mm
Thickness: 8mm

Press

GALATO

Capacity: 40 ton.

MECÂNICA EXACTA

Capacity: 45 ton.

MECÂNICA EXACTA

Capacity: 60 ton.

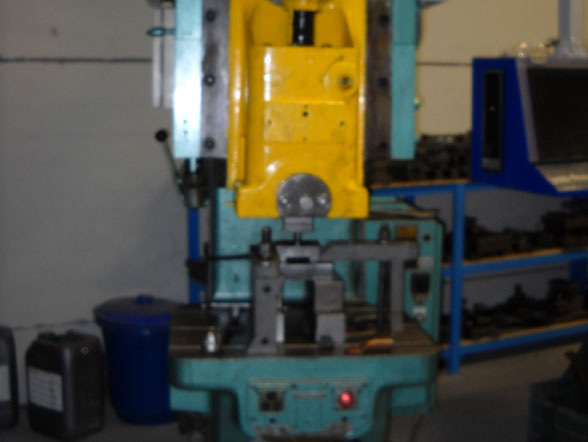

WEINEGARTEN

Capacity: 67 ton.

Welding Machines

MIG MAG | TIG | ELECTRICAL DISCHARGE

Software

CAD CAM

Version:Mastercam 2017 (X9)
with Machining 3D
